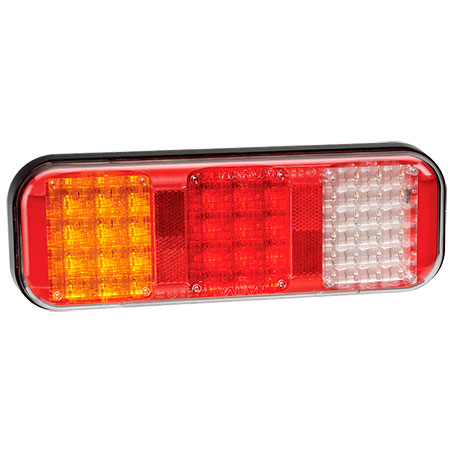

LAMP COMBINATION STOP / TAIL / TURN / REV – SS94210
| Description | Stop/Tail/Indicator/Reverse Light LED 9 to 33V |
| Warranty | 1Y |
| Voltage | 9 to 33 |
| Weight | .68kg |
| Light Style | Stop/Tail/Indicator/Reverse Light |
| Light Type | LED |
| Mount Cnt to Cnt | 116mm |

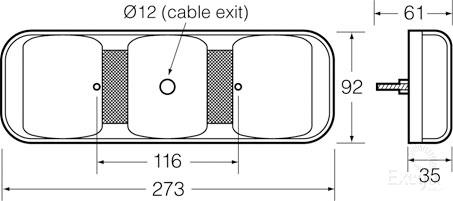

| Size | 273 x 92 x 35mm |
| Lens Material | Polycarbonate |
| Current | Stop: 0.36A, Tail: 0.1A, Indicator: 0.37A, Reverse: 0.6A @ 12V |
| Mount | Surface Mount |

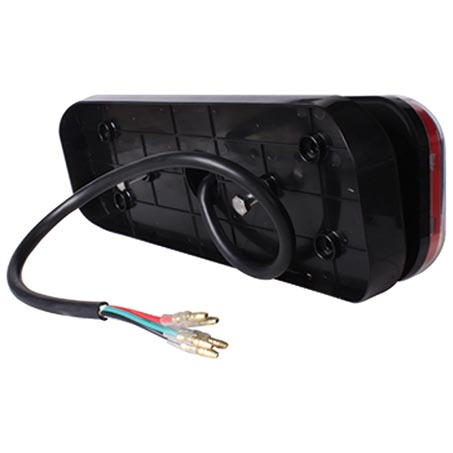

| Connector | Pre-wired |
| Environmental | IP67, IP68 |
| Compliance | Stop/Tail: ADR 49/00, Indicator: ADR6/00 Cat 2A, Reverse: ADR 1/00, Reflector: ADR 47/00 |
